Lime mortar repointing for older and heritage properties
If your home was built before roughly 1920 - and many across Yorkshire were - it was almost certainly built with lime mortar. Lime is not simply an older version of cement. It behaves differently, and buildings built with it need to be maintained with it.
Using the wrong mortar on an older building causes damage that is slow to appear, difficult to reverse and expensive to put right.
Why lime is used on older buildings
Lime mortar has three properties that make it essential for pre-twentieth century construction:
Breathability. Older buildings were not built to be airtight. Solid stone and brick walls rely on being able to absorb and release moisture through their fabric. Lime mortar is vapour-permeable - it allows moisture to move through and out of the wall. A wall that can breathe manages dampness. A wall that cannot will accumulate it.
Flexibility. Lime mortar remains slightly flexible after it cures. Older buildings move - seasonally, as the ground shifts, as timbers shrink. Lime accommodates this movement without cracking. Cement does not, which is why cement-pointed older buildings often develop cracks along the brick-mortar interface rather than in the mortar itself.
Sacrificial nature. In a well-built masonry wall, the mortar joint is designed to be the weakest point - intentionally. If movement or weathering causes something to give, you want it to be the mortar, not the brick or stone. You can rake out and replace mortar without touching the masonry units. Replacing spalled stone is far more costly. Lime mortar is softer than the surrounding stone or brick; cement often is not.
Types of lime mortar
There are different types of lime, and matching the right one to the building matters.
Natural Hydraulic Lime (NHL) hardens through reaction with water as well as carbonation in air. It is the most commonly used lime in external repointing work.
The three grades are:
NHL 2 - feebly hydraulic; slow to set, very flexible and permeable; used in sheltered situations, on soft stone and internally
NHL 3.5 - moderately hydraulic; the most versatile grade, used on most external repointing work on solid-walled brick and stone buildings
NHL 5 - eminently hydraulic; stronger and faster setting; suited to exposed positions and hard masonry where a more durable joint is required
Lime putty is non-hydraulic lime - it sets entirely through carbonation, absorbing CO₂ from the air over time. It is softer and more flexible than NHL and is used on the most sensitive historic and listed buildings where maximum breathability and minimal compressive strength are required. Lime putty mortars take considerably longer to harden and must be protected from frost and drying winds during the early curing period.
Hot mixed lime mortar is made by slaking quicklime directly with aggregate and water, rather than using a pre-processed binder. The resulting mortar is highly workable, develops good early plasticity and is well regarded for sensitive conservation work. It is less common in everyday repointing but appropriate on certain heritage projects where material authenticity is a priority.
We assess the building and the existing mortar before specifying a mix. Getting this wrong - using too strong a lime on a soft stone building, for example - causes the same problems as using cement.
How to tell if your property needs lime mortar
You need lime mortar if:
-
Your property was built before approximately 1920 (pre-dating mass cement production in the UK)
-
The existing pointing has a soft, slightly textured appearance, often with a buff, cream or grey tone rather than a hard grey finish
-
The existing mortar crumbles slightly rather than snapping or chipping
-
Your property is a listed building or is within a conservation area
-
The building is stone-built rather than modern brick
If you are unsure, describe the property when you contact us. We can advise before any inspection is arranged.
What happens when cement is used on a lime building
We encounter this regularly on properties across Harrogate, Ilkley and Saltaire - particularly where earlier repair work was carried out by contractors who applied cement without assessing the building type.
Cement mortar is significantly less permeable than lime. On a solid-walled building, this creates a seal at the joint that prevents moisture from escaping outward. Instead, moisture accumulates behind the hard joint face and within the masonry. In winter, this water freezes and expands inside the stone or brick face - causing the face to crack and flake off. This is called spalling, and once the face of a stone or brick is gone, it generally cannot be repaired without replacement.
Removing failed cement repointing and replacing with lime is one of the more complex jobs we carry out. The cement must be removed carefully - mainly by hand with chisels rather than with power tools - to avoid further damage to the masonry arrises.
Our lime repointing process
-
Assessment - confirm the building type, existing mortar, masonry condition and appropriate lime specification
-
Raking out - careful removal of failed mortar to the correct depth (15–25mm minimum), without damaging brick or stone edges
-
Preparation - clean joints, dampen the surrounding masonry (lime requires a damp substrate to bond correctly and avoid rapid drying)
-
Mixing - mortar is gauged and mixed to the agreed specification on site; pre-bagged lime mortars are used where appropriate to a specified aggregate and NHL grade
-

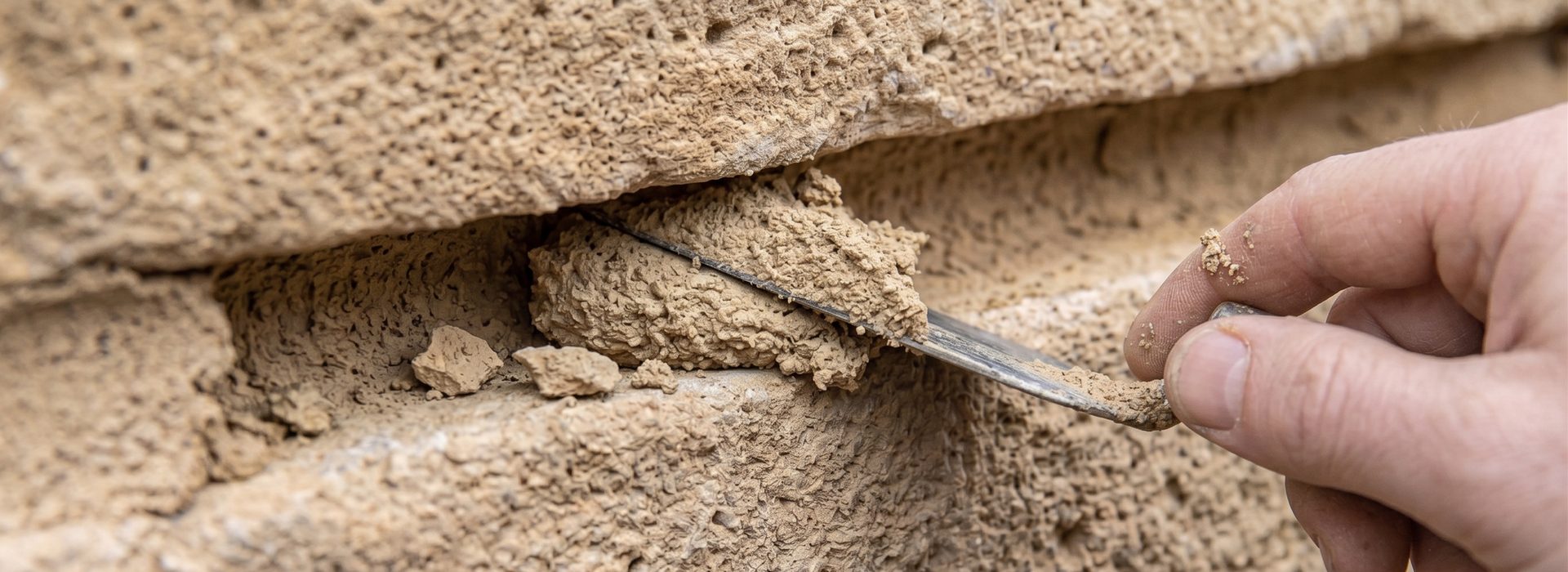

Application - mortar is pressed firmly into the joint in layers where depth requires it, rather than packed in as a single thick application
-
Finishing - joints are finished to match the existing profile; lime has a naturally softer, slightly textured appearance compared to cement
-
Aftercare - new lime pointing needs protection from rapid drying; in warm or windy conditions, joints may need to be covered for the first few days
Seasonal limitations
Lime mortar is more sensitive to conditions than cement:
-
Frost - work should not be carried out when frost is forecast within 48 hours of completion; newly pointed lime will be damaged by freezing before it has set
-
High heat - in hot, dry weather, lime can cure too fast; joints may need to be covered or misted with water to slow the cure
-
The best conditions are mild, still weather - which is why autumn and spring are often preferable for lime work
We will not carry out lime repointing in conditions that would compromise the result.
What lime mortar looks like
New lime pointing looks different from cement. It is typically softer in tone - buff, cream, light grey or sandy, depending on the aggregate - and has a slightly coarser texture. This is correct. It blends with the masonry naturally over time and weathers well. Hard grey cement joints stand out visually on older stone buildings precisely because they are not the right material.
Where we work
We carry out lime mortar repointing across Bradford, Leeds, Harrogate, Ilkley and surrounding areas - including heritage properties, older terraced housing, stone farmhouses and buildings in conservation areas. Saltaire - a UNESCO World Heritage Site - contains large quantities of Victorian stone construction that requires careful lime work when maintained correctly.
Where lime-pointed buildings also have damaged or spalled masonry, repair work is typically combined with repointing: see masonry repair.
Frequently asked questions
Q1. Is lime repointing seasonal? Yes. We do not work in frost conditions, and very hot weather requires careful management. Spring and autumn are typically the best seasons for lime pointing. Q2. Is lime mortar weaker than cement? Intentionally, yes - it needs to be softer than the surrounding masonry so that any movement or weathering affects the mortar rather than the brick or stone. Strength in a mortar is not always a virtue. Q3. How long does lime repointing last? Correctly applied lime repointing on a well-maintained building should last 30 to 50 years, often more. Historic buildings with original lime mortar that was never repointed have joints hundreds of years old. Q4. Does lime repointing look the same as the original? It will be close in colour and texture - and will weather further over time to blend with the surrounding masonry. It will not look identical to sharp cement pointing, and it is not meant to. Q5. Is lime mortar repointing more expensive than cement? Yes, generally. Lime materials cost more and the work is slower - lime is applied in thinner layers and requires more care during curing. Specialist lime work also requires greater experience to get the mix and finish right. For older Yorkshire properties, it is the correct specification - using cement to save money typically results in more costly masonry damage over time. Q6. Can cement pointing be replaced with lime on an older property? Yes - and in many cases it is strongly advisable. Cement mortar applied to older solid-wall properties traps moisture the wall cannot release, leading to dampness, spalling brickwork and frost damage. Removing defective cement and replacing with an appropriate lime mix restores the wall's breathability and protects the surrounding masonry.
Not sure if your property needs lime or cement?
A Building Leak & Damp Inspection will establish which material is appropriate and whether previous cement repairs have caused problems that need addressing first.
